ATTACHMENTS /Hydraulic Breaker
V Series
First produced in 1973 with Krupp Berco Bautechnik, the pioneer of hydraulic breakers, Konan's MKB hydraulic breakers are manufactured to produce high impact force to demolish the hardest concrete and rocks.
The V Series of MKB hydraulic breakers have a light, simple and efficient design which allows easier operation manoeuvrability and extended product lifespan. Numerous unique functions are also available for clients to enhance and customize the hydraulic breakers to suit their needs and reduce operating and maintenance costs.
The V Series is generally suitable for excavators above 16 tons.
Please visit our Catalog page under Parts & Services for the full product specifications.
-
Simple yet efficient design to produce lower noise levels and vibration during operations
-

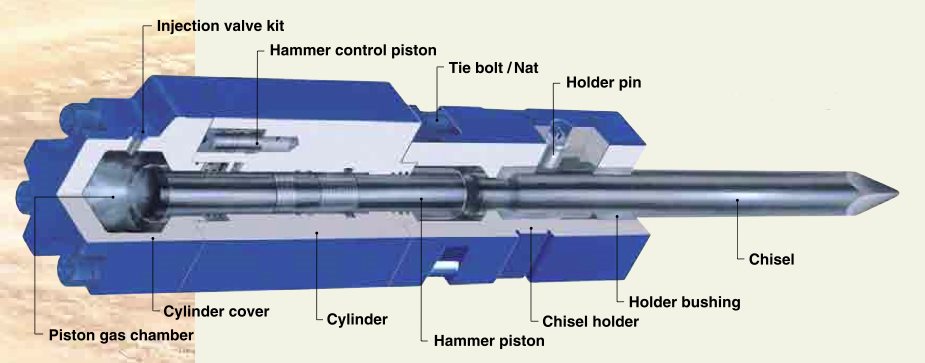

High impact power through MKB’s unique oil pressure & nitrogen gas driving system
-
Through the combination of hydraulic oil pressure and nitrogen gas, MKB hydraulic breakers has high powered and efficient driving mechanism to reduce energy loss and maximise impact force
-
More power and higher operation efficiency
-
-
Non-accumulator models
-
By eliminating the need for accumulators, MKB hydraulic breakers reduces operating and maintenance costs due to periodic replacements for traditional rubber accumulators.
-
-
Variable throttling mechanism
-
This mechanism is designed to efficiently use the hydraulic oil from the excavator. With this, it is possible to apply the optimum impact force and speed depending on the work requirements.
-
Models with this mechanism: MKB1400V-6000V
-
| V series | Weight with bracket & chisel (KG) | Overall length with chisel (mm) | Chisel diameter (mm) | Standard blowing frequency (Blow/min) | Required oil flow rate (litres/min) | Operating oil pressure (Mpa) | Applicable excavator (Ton) | Special applications |

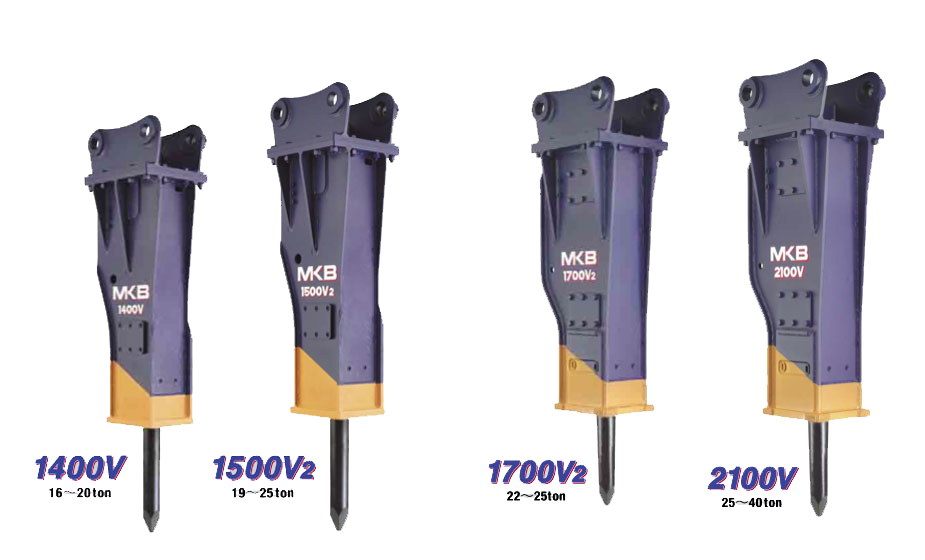

| MKB1400V | 1400 | 2550 | 130 | 360~480 | 100 ~ 130 | 15 ~ 18 | 16 ~ 20 | Non-accumulator mechanism, Impact frequency switch over feature |
| MKB1500V2 | 1700 | 2683 | 135 | 360~480 (430~570) | 115 ~ 150 | 19 ~ 25 | ||

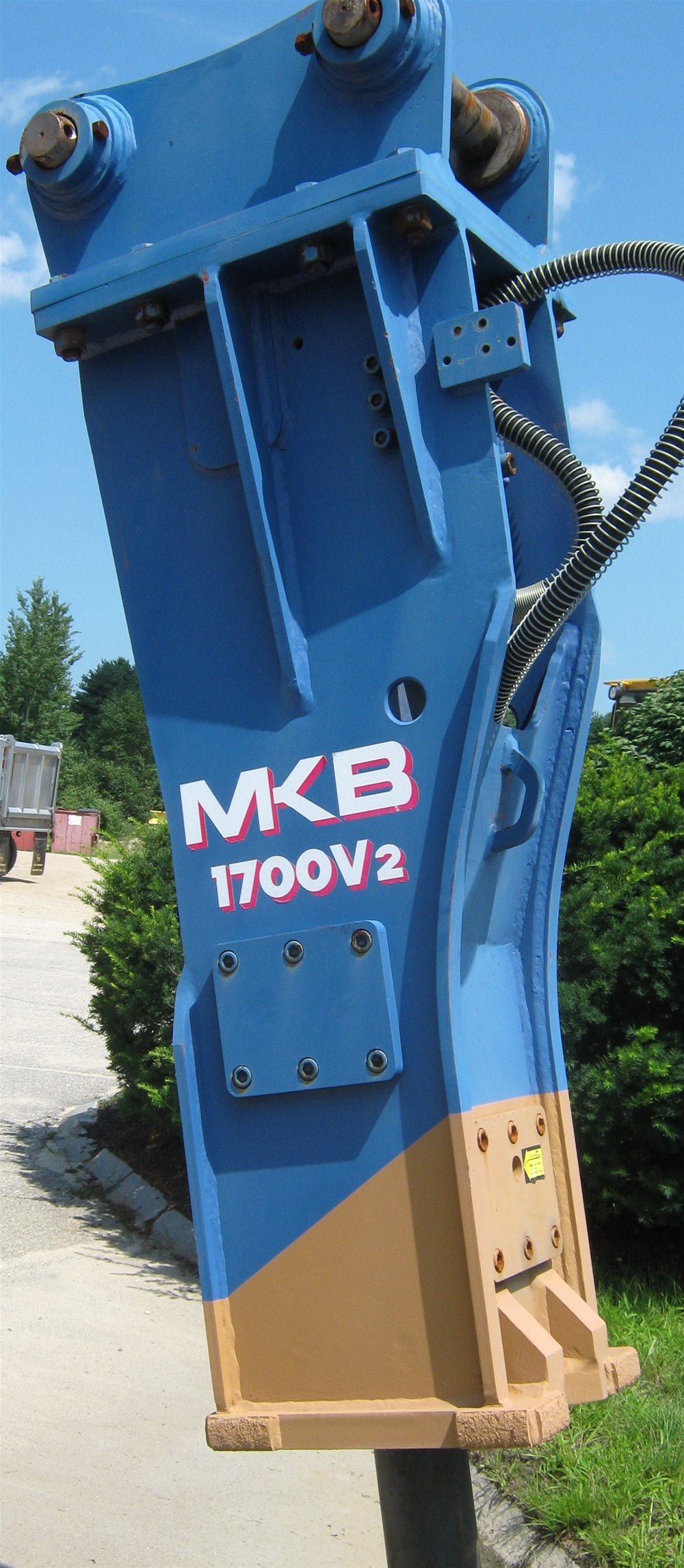

| MKB1700V2 | 1750 | 2683 | 137 | 360~480 (430~570) | 130 ~ 170 | 22 ~ 25 | ||
| MKB2100V | 2400 | 2846 | 150 | 340~450 (480~650) | 135 ~ 180 | 25 ~ 40 | Impact frequency switch over feature | |
| MKB2500V | 2700 | 2930 | 160 | 320~450 (460~630) | 160 ~ 225 | 30 ~ 45 | ||

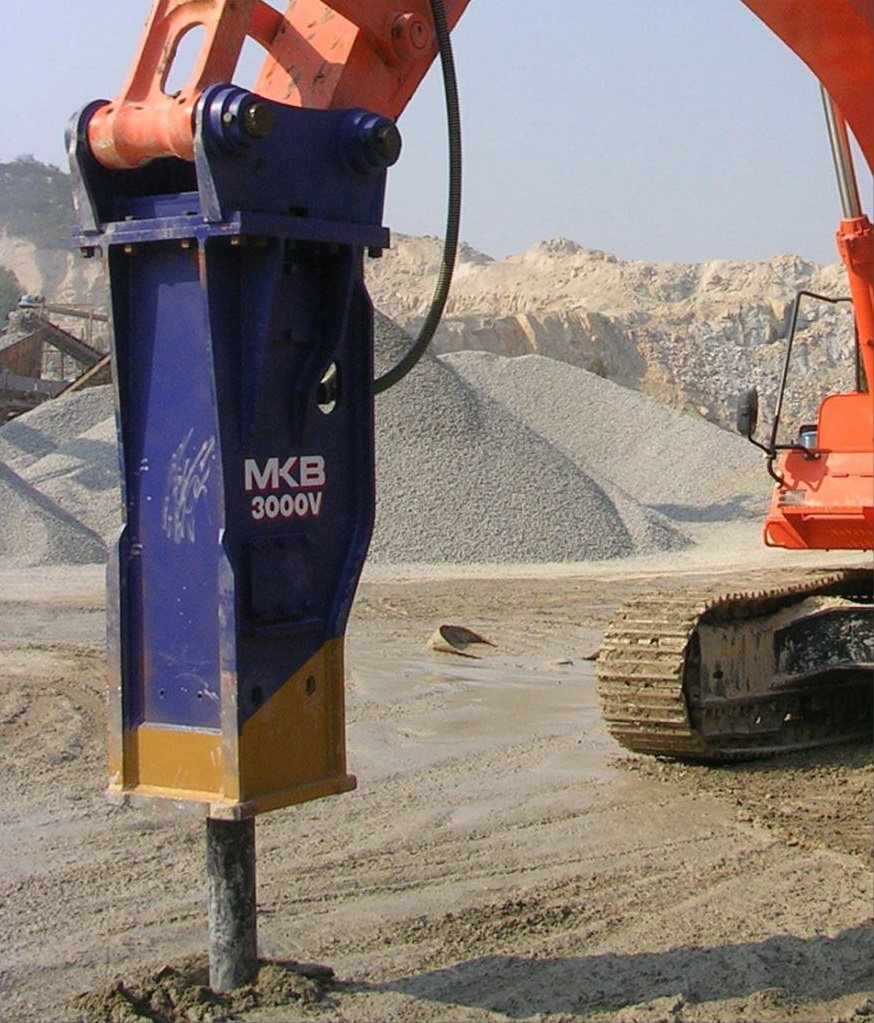

| MKV3000V | 3300 | 3245 | 165 | 300~450 (400~600) | 170 ~ 260 | 40 ~ 50 | ||
| MKB4000V | 4200 | 3249 | 180 | 300~400 (430~570) | 220 ~ 300 | 50 ~ 75 | ||
| MKB6000V | 5900 | 3581 | 200 | 250~380 (350~550) | 220 ~ 330 | 75 ~ 100 |
