ATTACHMENTS /Processor
Transformer

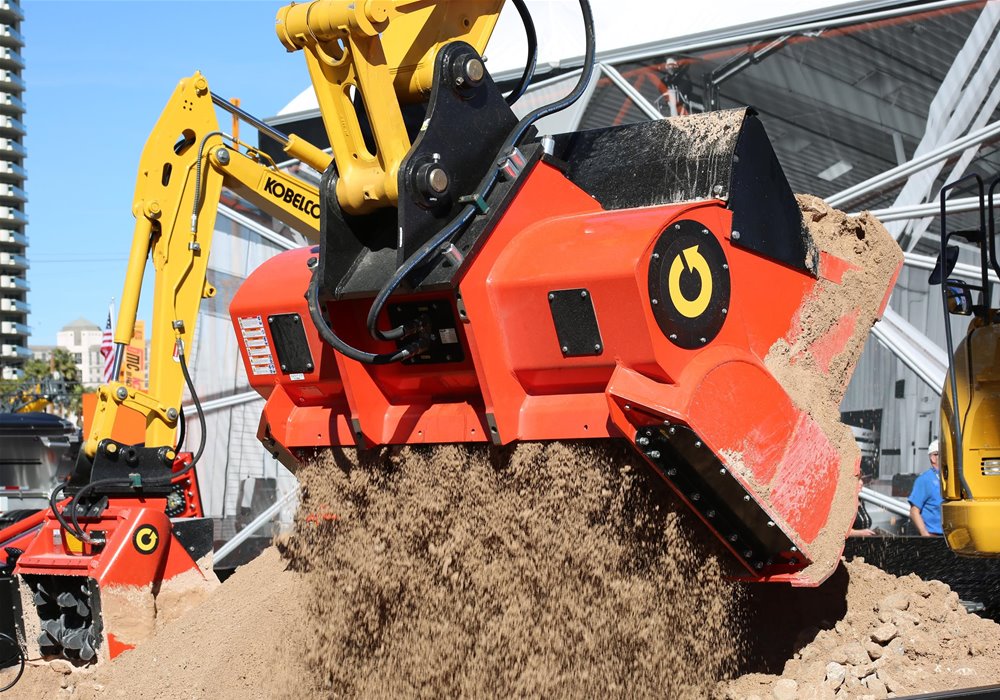

The ALLU Transformer is built for efficiency. By reducing the number of process steps needed, this hydraulic attachment enables you to achieve maximum efficiency on job sites, across all kinds of applications. The Transformer will truly transform the way you work - forever.
DL-SERIES - LANDSCAPING & AGRICULTURE
The ALLU Transformer DL are screening attachments for compact base machines and are suitable for excavators max. 12Tn, loaders 8Tn, tractors and backhoe loaders.
The DL-series make the perfect attachment for landscaping and agricultural applications. From composting to aerating, top soil screening to waste and debris processing, all can be carried out on-site. They are truly mobile, offering you the versatility and flexibility to work more efficiently in the most challenging environments.
D-SERIES - EARTHMOVING

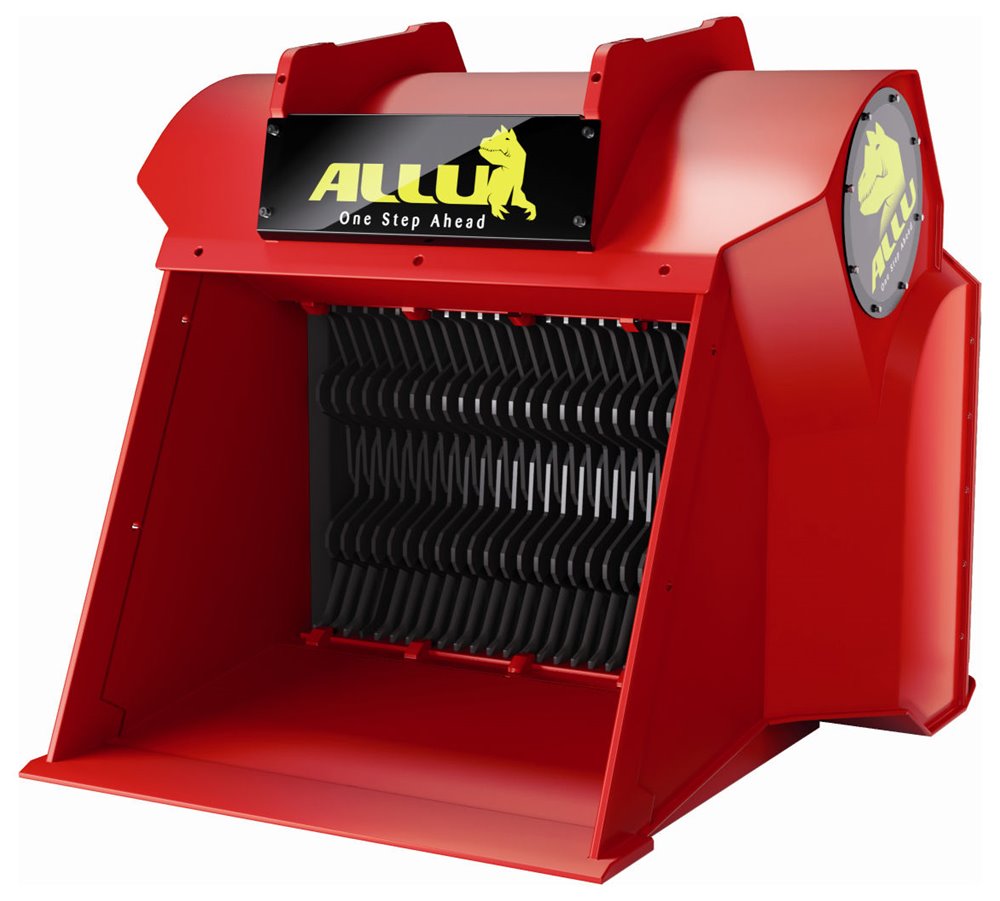

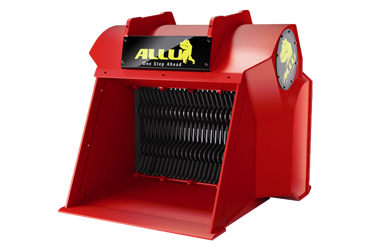

The ALLU Transformer D series screener buckets have been developed for larger processing jobs. Everything from aerating compost, primary on-site screening and processing construction material. Not only does this attachment provide substantial material savings and transport costs, it also ensures that no time is lost when waiting for replacement materials.
DL-SERIES
| Model | Excavator | Wheel loaders | Volume | Oil flow | Weight |
|---|---|---|---|---|---|
| ton | ton | m3 | l/min | Kg | |
| DL 2-09 | 4 - 12 | 2 - 8 | 0.2 - 0.3 | 60 - 90 | 430 |
| DL 2-12 | 7 - 12 | 3 - 8 | 0.4 - 0.5 | 60 - 90 | 540 |
| DL 2-17 | 9 - 12 | 4 - 8 | 0.6 - 0.7 | 60 - 90 | 695 |
D-SERIES
| Model | Excavator | Wheel loaders | Volume | Oil flow | Weight |
|---|---|---|---|---|---|
| ton | ton | m3 | l/min | Kg | |
| DN 2-09 | 10 - 28 | 4 - 14 | 0.4 - 0.5 | 70 - 120 | 940 |
| DN 2-12 | 12 - 28 | 6 - 14 | 0.5 - 0.6 | 70 - 120 | 1130 |
| DN 2-17 | 15 - 28 | 7 - 14 | 0.7 - 0.8 | 70 - 120 | 1400 |
| DN 3-09 | 12 - 28 | 6 - 14 | 0.7 - 0.8 | 70 - 120 | 1220 |
| DN 3-12 | 16 - 28 | 7 - 14 | 0.9 - 1.0 | 95 - 160 | 1410 |
| DN 3-17 | 20 - 28 | 7 - 14 | 1.3 - 1.5 | 95 - 160 | 1760 |
| DS 3-12 | 16 - 35 | 8 - 22 | 1.3 - 1.5 | 95 - 160 | 1610 |
| DS 3-17 | 20 - 35 | 8 - 22 | 1.3 - 1.5 | 95 - 160 | 2000 |
| DS 3-23 | 24 - 35 | 12 - 22 | 1.8 - 2.1 | 120 - 200 | 2520 |
| DS 4-12 | 20 - 35 | 10 - 22 | 1.4 - 1.6 | 95 - 160 | 1930 |
| DS 4-17 | 24 - 35 | 12 - 22 | 2.1 - 2.4 | 120 - 200 | 2360 |
| DS 4-23 | 30 - 35 | 14 - 22 | 2.8 - 3.2 | 120 - 200 | 3020 |
| DH 3-12 | 18 - 45 | 8 - 30 | 0.9 - 1 | 140 - 235 | 1950 |
| DH 3-17 | 22 - 45 | 10 - 30 | 1.4 - 1.6 | 140 - 235 | 2400 |
| DH 3-23 | 26 - 45 | 14 - 30 | 1.9 - 2.1 | 140 - 235 | 2960 |
| DH 4-12 | 22 - 45 | 10 - 30 | 1.4 - 1.6 | 140 - 235 | 2280 |
| DH 4-17 | 27 - 45 | 14 - 30 | 2.1 - 2.4 | 140 - 235 | 2780 |
| DH 4-23 | 32 - 45 | 16 - 30 | 2.8 - 3.2 | 190 - 315 | 3490 |
| DH 4-27 | 36 - 45 | 18 - 30 | 3.5 - 4.1 | 240 - 400 | 4080 |
