ATTACHMENTS /Processor

Processor

ALLU attachments are designed to operate in demanding environments on demanding materials. For over 30 years our products have been known for their quality, reliability and efficiency.

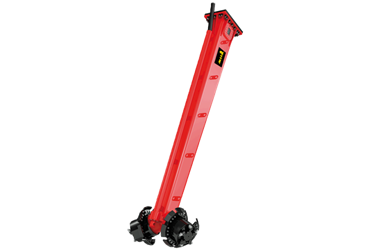

The ALLU Processor is a power mixer attachment for a conventional excavator.

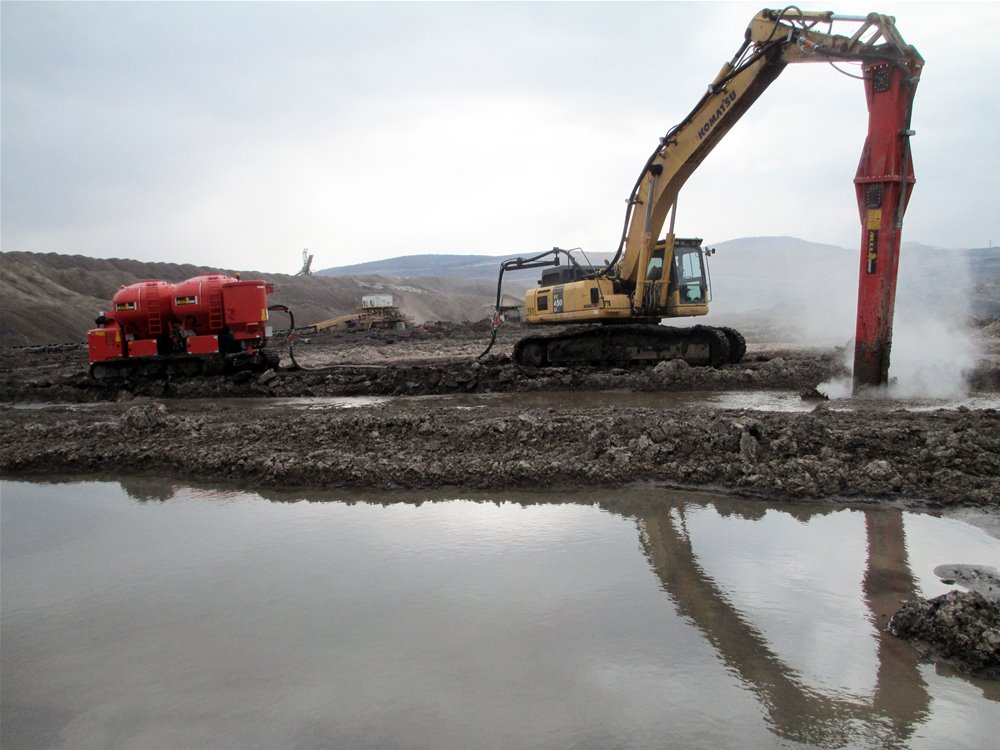

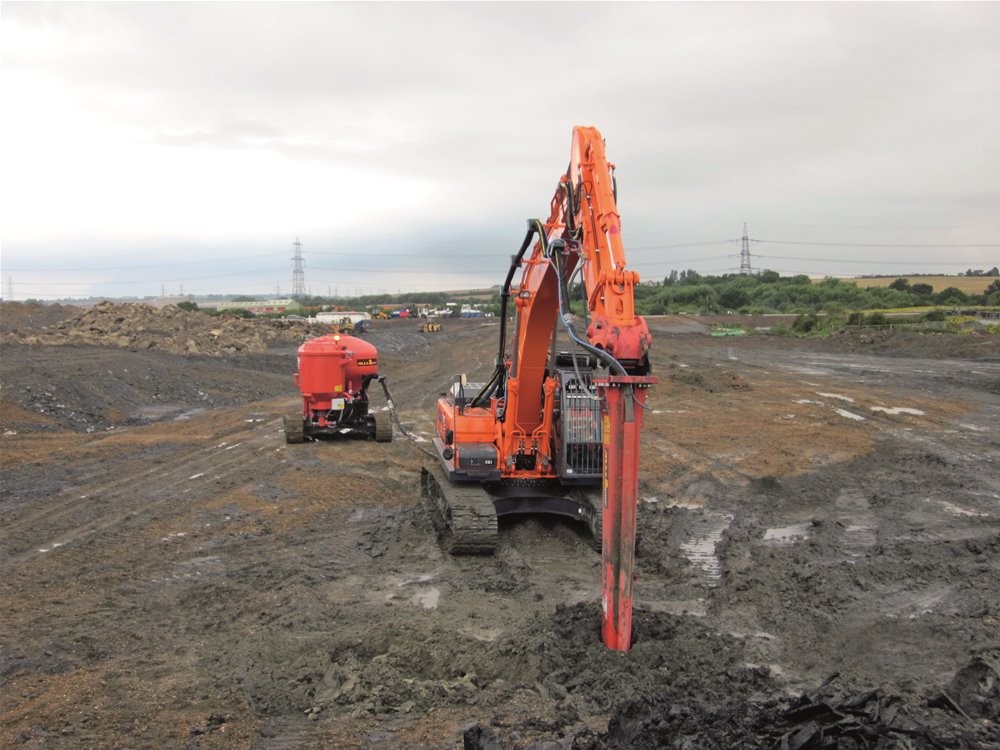

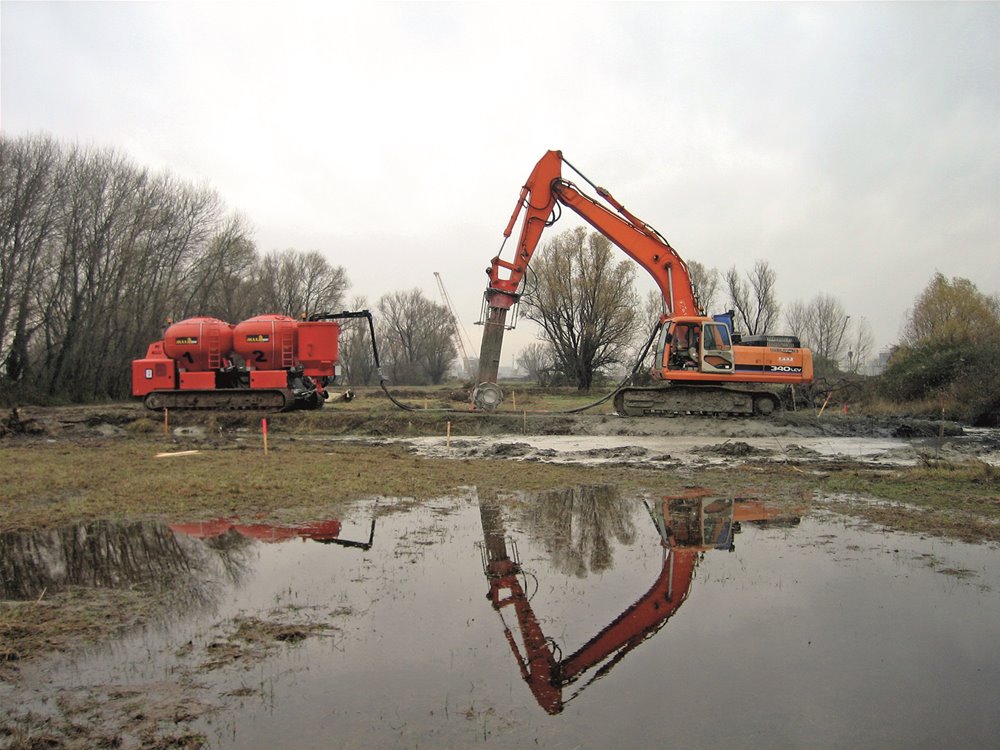

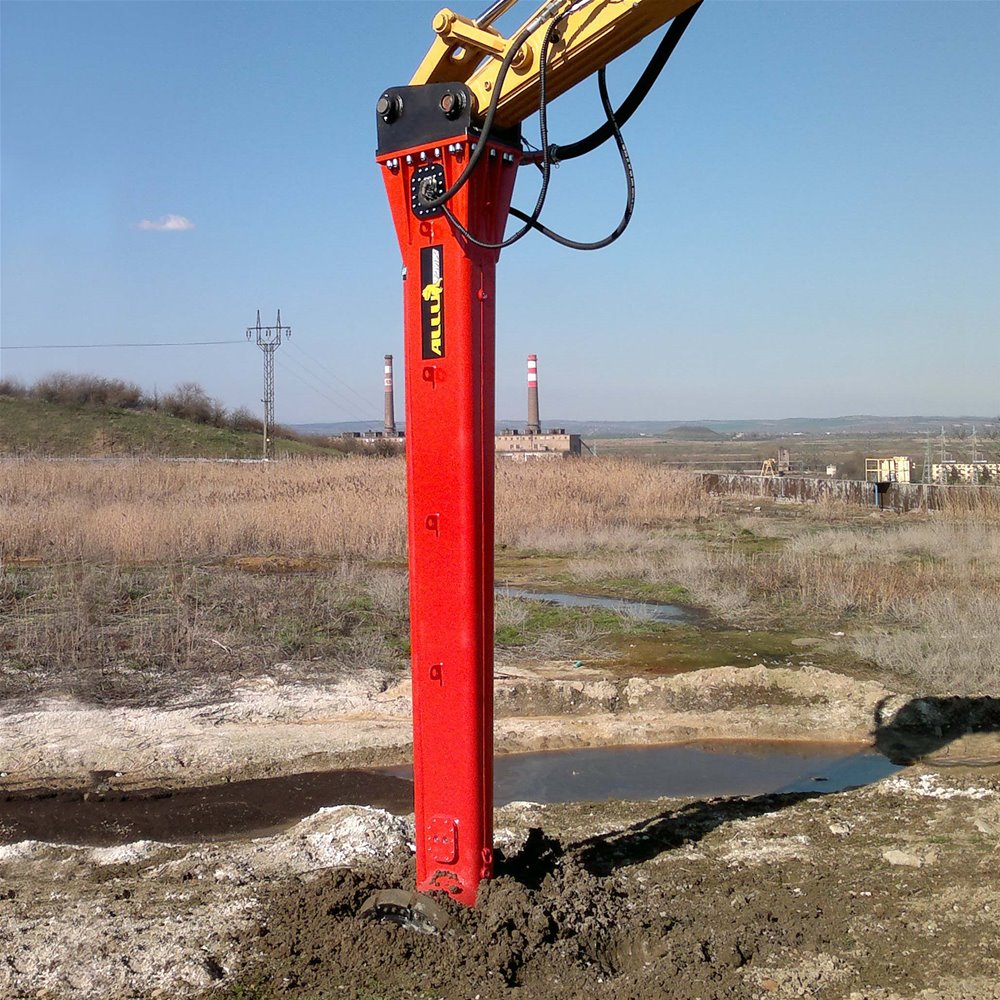

This attachment converts the excavator into a powerful and versatile mixing tool capable of penetrating and effectively mixing a variety of difficult materials - everything from clay, silt, peat, sludge and sediment, to dredged material and contaminated soil.

PROCESSOR 300 HD

Working to a depth of 3 meters and with a weight of 2,095 kg (+400 kg fabricated mount plate), the Processor 300 HD is designed to be durable. It’s made from wear-resistant steel, with a stem that’s engineered to be strong, streamlined and lightweight.

Powered by the excavator's hydraulic system, and benefitting from its ability to reach difficult or soft areas, the Processor 300 HD can mix materials everywhere the excavator goes.

Binders or chemical agents are delivered to the area of the highest mixing shear by an attached 80-mm diameter pipe, injected via nozzle located between the mixing drums.

The attachment is equipped with automatic torque adjustment valves between the two hydraulic motors, drum rpm and temperature sensors as well as sensors for oil leakage detection inside the frame construction. The excavator operator controls the rotational direction of the drums to adjust for most effective mixing.

2m and 3m extension tubes are also available as options for added working depth.

PROCESSOR 500 HD

Working to a depth of 5 meters and with a weight of 2,445 kg (+400 kg fabricated mount plate), the Processor 500 HD is both durable and strong.

Despite its strength, the wear-resistant steel stem is both nimble and streamlined. Powered by the excavator's hydraulic system, and benefitting from its ability to reach difficult or soft areas, the Processor 500 HD can mix materials everywhere the excavator goes.

Binders or chemical agents are delivered to the area of the highest mixing shear by an attached 80-mm diameter pipe, injected via nozzle located between the mixing drums.

The attachment is equipped with automatic torque adjustment valves between the two hydraulic motors, drum rpm and temperature sensors as well as sensors for oil leakage detection inside the frame construction. The excavator operator controls the rotational direction of the drums to adjust for most effective mixing.

2m and 3m extension tubes are also available as options for added working depth.

Model

Weight Working Depth Base Machine Hydraulic Pressure Hydraulic Flow Hydraulic Power
  Kg m ton MPa psi l/min kW hp
Processor 300 HD 2095 3 25-40 23-35 3,300-5,100 200-300 160 215
Processor 500 HD 2445 5 25-40 25-35 3,300-5,100 200-300 160 215
