ATTACHMENTS /Vibratory Hammer

OVR Series

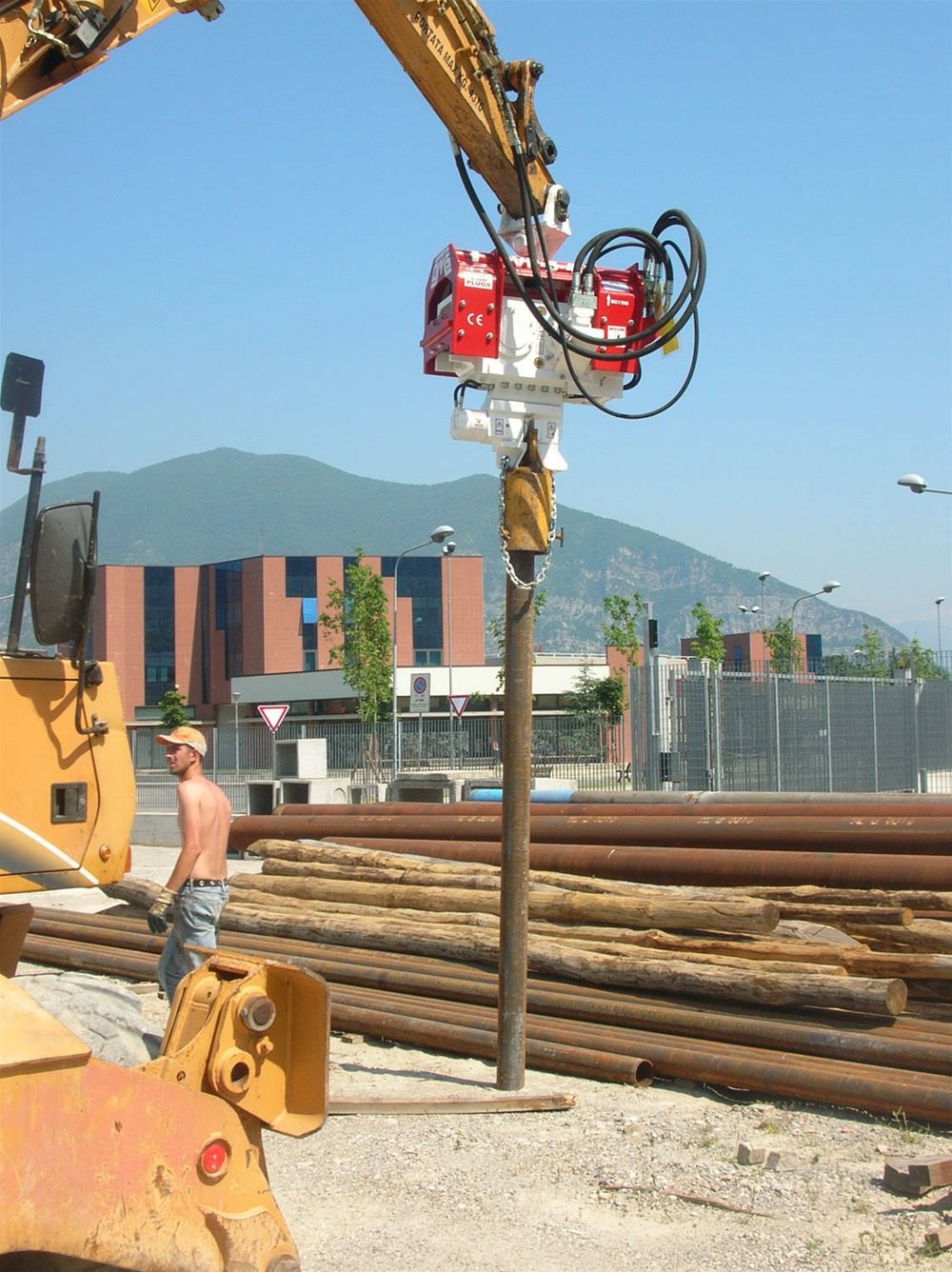

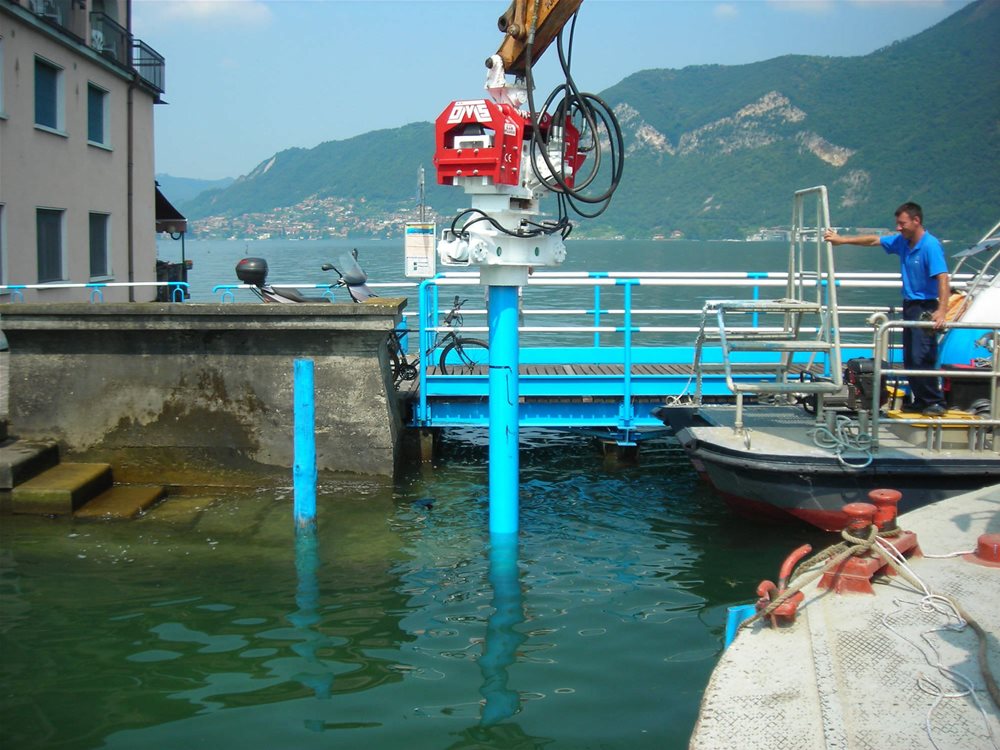

Unlike traditional pile driving equipment that uses a large weight or ram to strike a pile, Ozkanlar vibratory hammers use spinning counter-weights to generate high frequency vibrations to sheet piles. This allows the piles to "cut" into the ground almost effortlessly, like a knife through butter.

Please visit our Catalog page under Parts & Services for the full product specifications.

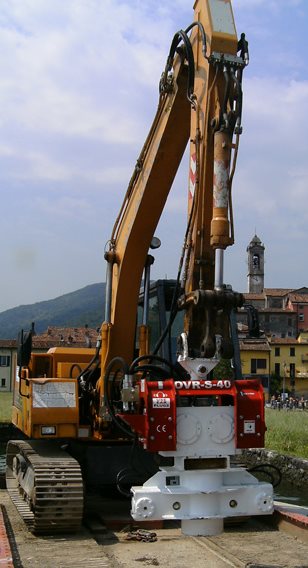

  • Save on crane operation costs as Ozkanlar vibratory hammers can be mounted onto your existing excavators for sheet piling works.

  • More powerful and lighter than other vibratory hammers, Ozkanlar vibratory hammers give users a higher power to weight ratio to increase work efficiency.

    • Higher driving power as the lighter Ozkanlar vibratory hammers use the excavator’s hydraulic system power themselves. Electric vibratory hammers depend heavily on bulky, stationary external power generators.

    • Increase work efficiency by reducing drive time. Electric vibratory hammers are limited in power and mobility due to the stationary, external power generators.

  • With higher vibration frequency, Ozkanlar vibratory hammers can drive sheet piles into the ground efficiently to generate less vibration through the ground to surrounding buildings.

    • Less vibration through the ground means that users can work near to existing infrastructures and not damage their foundations.

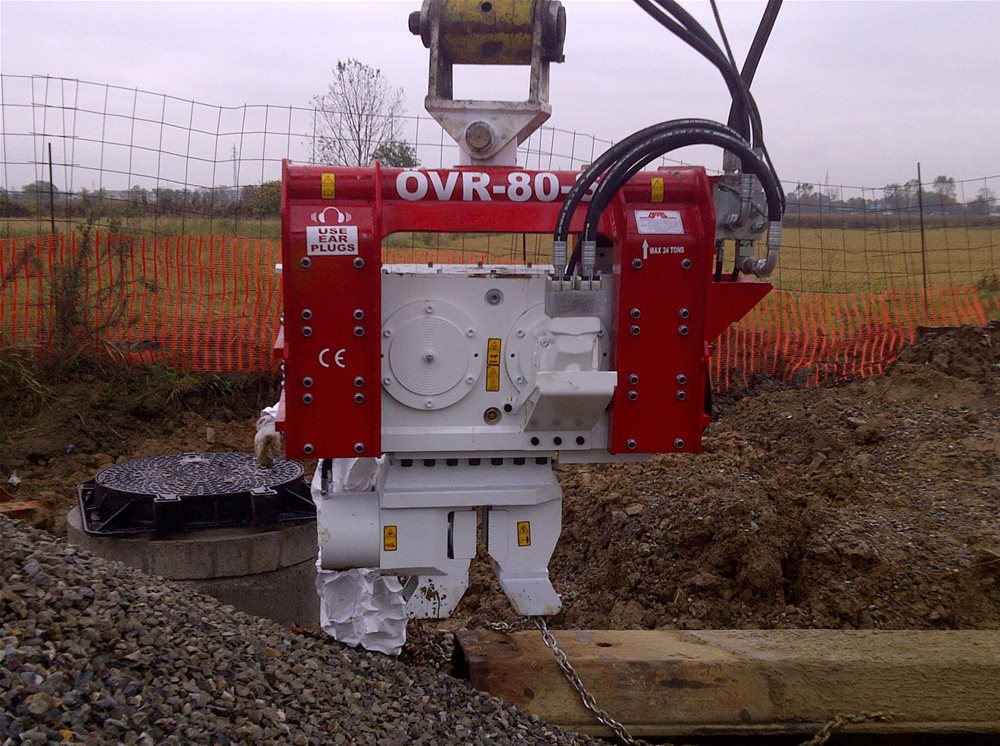

  Model OVR-40 OVR-50 OVR-60 OVR-80
Centrifugal Force Ton 27 39 51 77
Eccentric Moment Nm 38.4 56 74 116
Max Rotation Speed Rpm 2500 2500 2500 2500
Power kW 85 110 153 165
Max. Amplitude mm 7 8 9 13
Max. Oil Flow Litres/min 100 150 200 275
Max. Oil Pressure Bar 280 280 280 280
Total Weight (with Clamp) Kg 1165 1445 1485 2316
Dynamic Weight Kg 720 980 1050 1750
Length mm 950 1038 1038 1103
Height mm 1150 1289 1289 1420
Width mm 682 757 757 850
Suitable Excavator Range   20 Ton 25 Ton 30 Ton 40 Ton
